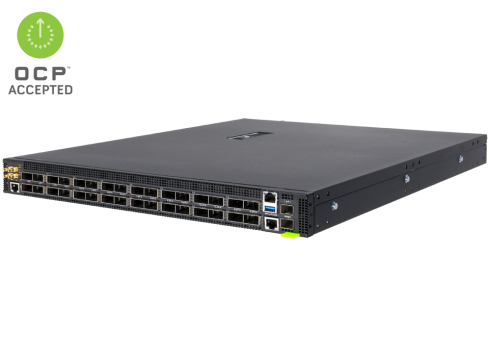

EdgeCore Switch full manged Layer3 • 32 Port • 32 x 400G QSFP-DD • 19 1 HE • Datacenter Switch • Back-to-front • DCS510 • 9716-32D-O-AC-B

EdgeCore DCS510 • 9716-32D-O-AC-B, 32 x 400G QSFP-DD ports, Broadcom Tomahawk 3 12.8Tbps ASIC, Quad-core Intel Xeon® D1518 CPU, dual hot-swappable 1300W AC PSUs and 5+1 Fan Modules with Front-to-Rear airflow, rack mount kit (Front and back), 3 years Hardware Warranty

Features

• 32 x QSFP-DD switch ports, each supporting 1 x 400 GbE or 1 x 100 GbE, or via breakout cables 4 x 100 GbE or 4 x 25 GbE.
• Incorporates Broadcom Tomahawk 3 switch series silicon.
• 1 RU form factor.
• Supports hot/cold aisles with front-to-back and back-to-front air?ow SKUs.

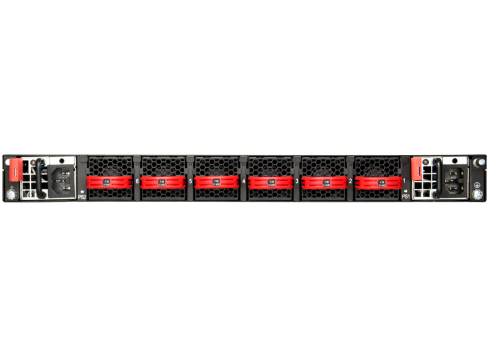

• All ports on front PSUs and fans accessible from rear.
• Hot-swappable, load-sharing, redundant 1300W PSUs.
• 5+1 redundant, hot-swappable fan modules.
• Hardware switch pre-loaded with Open Network Install Environment (ONIE) for automated loading of compatible open source and commercial NOS offerings.

Compatible Software Option

• Arrcus – ArcOS

• CGS – COS

• SONiC

• IP Infusion OcNOS™
