ALLNET Touch Display Tablet 4 inch with 1GB/8GB, RK3128, Android 7.1(220V Version)
| Brand: ALLNET |
EAN:
4038816181343
Internal Reference:
UD4RK3128A70
Petit écran de 4 pouces pour l'intégration dans la domotique, comme panneau de commande pour l'éclairage et le son, etc.
Particularité : 2 microphones ont été installés et l'appareil offre des interfaces pour RS485, alarme, sonnette de porte, sortie audio avec amplificateur, etc.

| System | Dimension | 86.6mm*86.6mm*35.3mm |
| Display size | 4 inch | |
| CPU | RK3128 Quad-core cortex-A7 ,1.2Ghz | |
| System  | Android 7.1 | |
| Resolution  | 480*480 | |
| Touch Panel  | 5 points capactive touch panel, IPS | |
| RAM | 1G | |
| Rome | 8G | |
| Network | WIFI  | 802.11b/g/n |
| Blue-tooth  | BT 4.0  | |
| Ethernet | 10M/100M | |

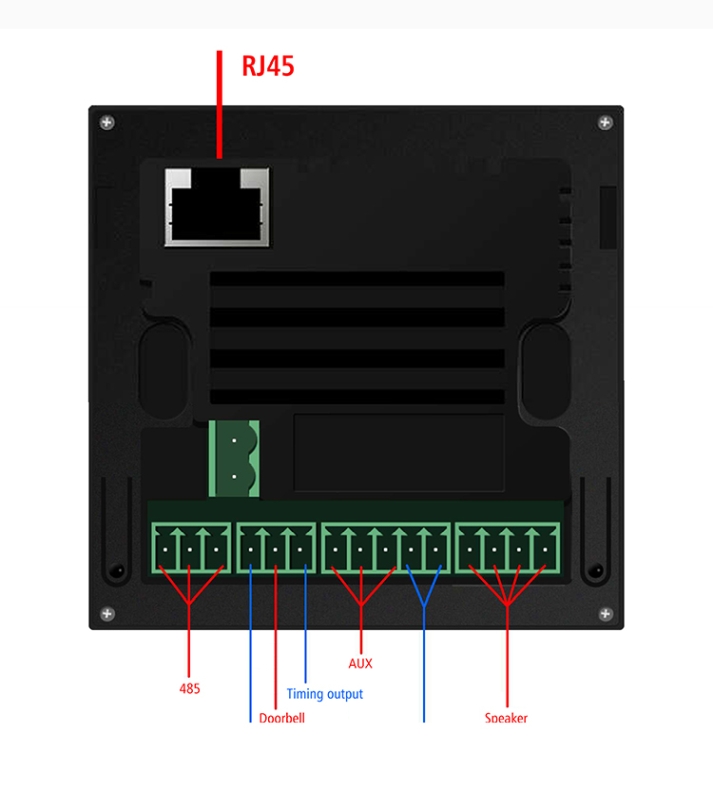

| I/O ports | RJ45  | Ethernet interface input (RJ-45 cable) , POE option |
| SD Card | Yes | |
| USB  | Mirco USB | |
| RS485 | RS485*1 | |
| Serial port | Serial port *2 | |
| Doorbell port | Support | |
| Alarm interface | Support | |
| AUX | Build in | |
| Power suply  | AC 110~240V , 50HZ | |

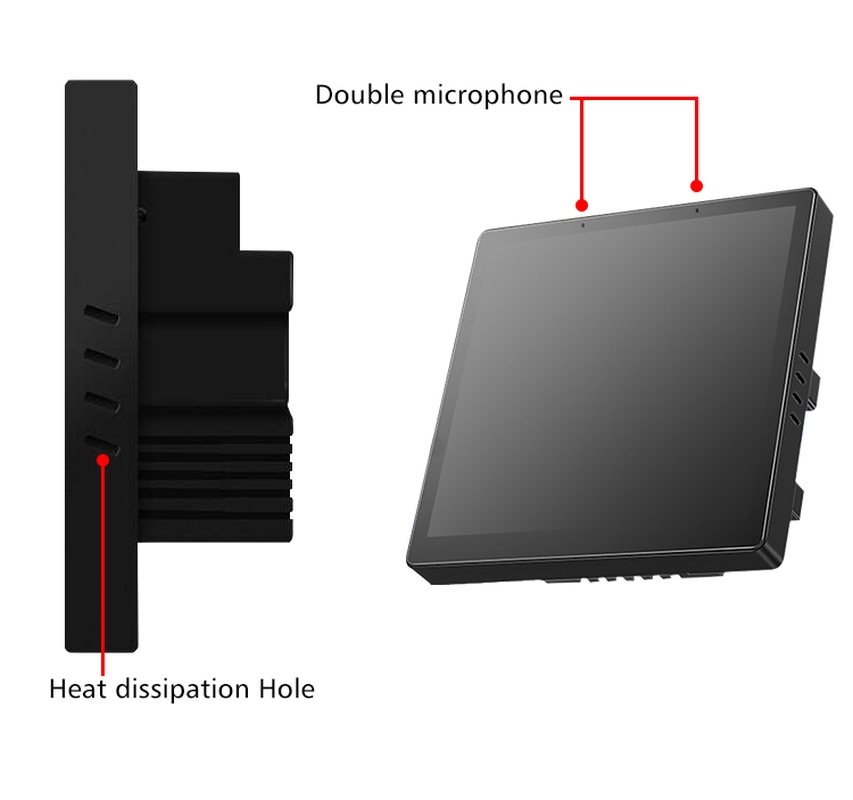

| Features | Microphone | 2x build in |
| Cooling method | Air-Cooled | |
| Media format | Video | MOV 1080P / AVI / WMV / RM / RMVB / 3GP / MKV / MP4 / ASF/ VOB |
| Audio | MP3 / WMA / WAV / AAC / FLAC / OGG | |
| Others | Camera | No camera |
| Battery | No | |

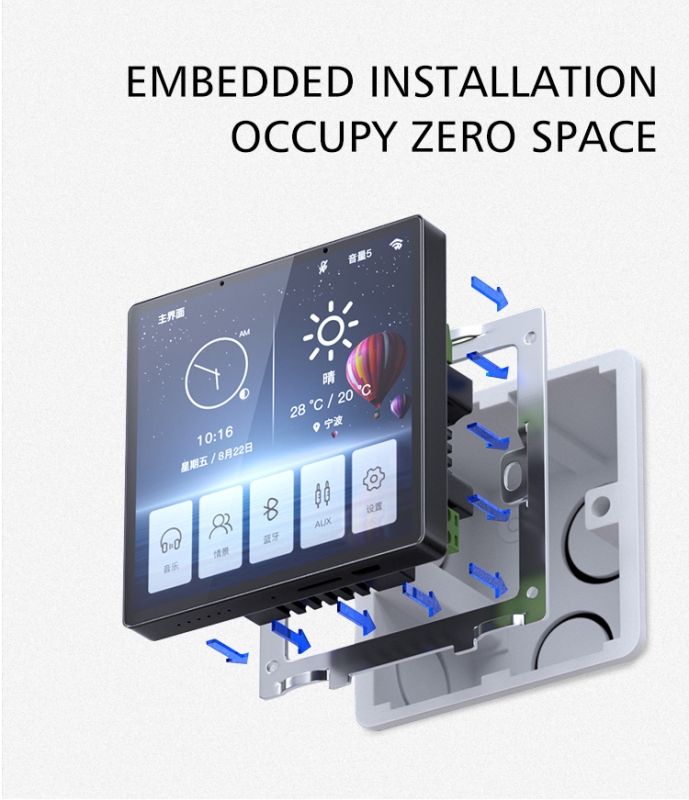

| Mount  | wall mounted / in wall  & embedded | |
| Color | Black | |
| Power consumption | 2x10W MAX | |
| Physical button | Power on/off | |
| Working temperature | .-5°~70° | |
| Language | multi-language support |
